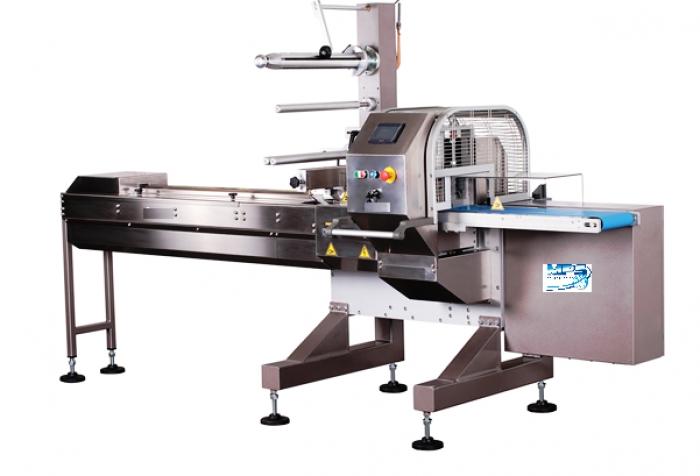

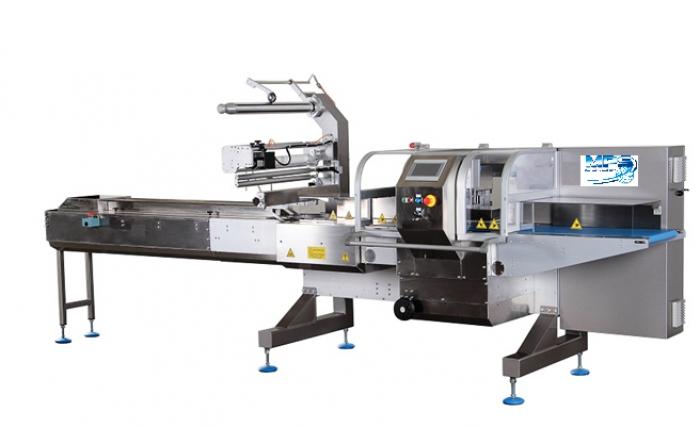

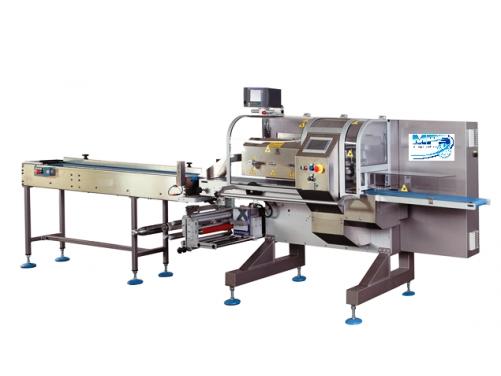

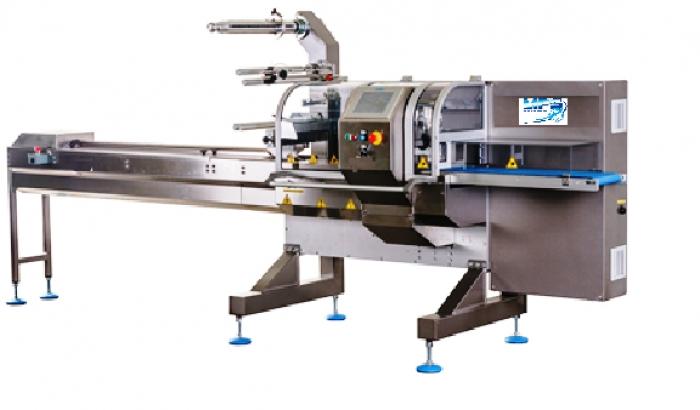

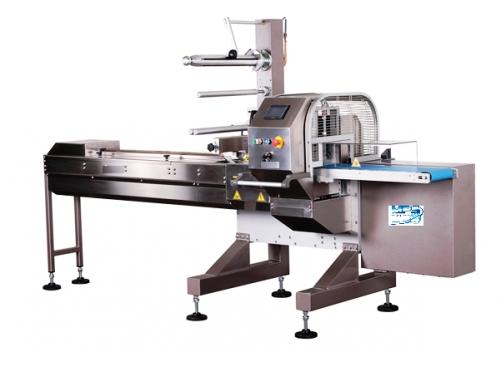

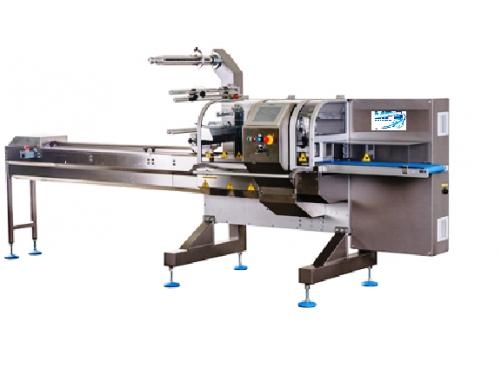

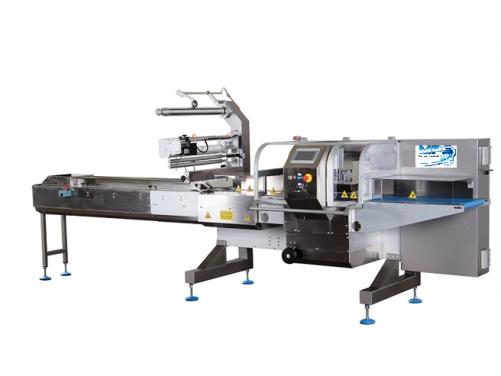

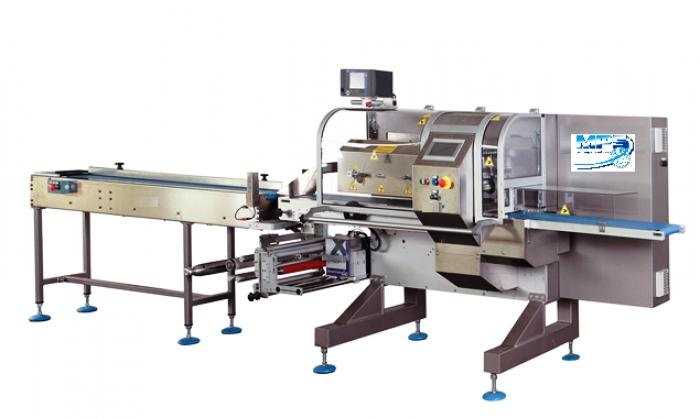

Automatic horizontal flow-pack machine Mercury uses a single film reel to make packages with one longitudinal and two transversal seals.
Painted iron structure and steel casing
Parts in contact with the product made of AISI 304 stainless steel
High accessibility to electrical and pneumatic components
1600 mm vane feed belt (standard)
Longitudinal sealing unit with two pairs of wheels
240mm rotary cross sealing unit
500mm expansion reel holder from above
800 mm motorized outfeed belt.
Three axes with brushless motors
Control panel with 4.3-inch HD touch screen integrated into the machine
Absorbed power from 3 to 6 KW. Voltage 400V-3-50 Hz.
Photocell for centring of printed film
Markers and printers
Multi-sector cross sealing unit
Special transport systems
All stainless steel version
